9" Android 7.1 Quad-Core DDR3 1GB RAM + 16GB ROM Multimedia HD Touch Screen Car Stereo Custom Fit for BMW

Android 7.1 Nougat | Quad Core | 16GB ROM | OBD2 | WiFi & 4G | DAB+

Note: This unit does NOT have a DVD drive.

•Applicable Models & Years
For BMW E90 Sedan (2005-2012), E91 Touring (2005-2012), E92 Coupe (2006-2013), E93 Convertible (2007-2013), (E90 / E92 / E93) M3 (2007-2012)
Face Panel: 293*240*130mm
Although we have made every effort to ensure this unit will be compatible with the listed vehicles, please check the year, dimensions and shape of the center console of your vehicles before purchasing.
IMPORTANT NOTES:
1. Please ensure your car's central  console is right angle before purchasing, or it can NOT fit with your car perfectly.
If the central console is circular angle, please refer to XTRONS PCD7739B.
2. Please check whether there is a frame in the center console of your car, if there is, please remove the frame first to finish the installation.
3. Please note that if your radio harness is 17 pins and the 4 pins indicated are empty, this unit can NOT fit with your car.
4. Please check whether your car's radio antenna port is in the car's trunk, if it is, you need to order a radio antenna extension cable to finish the installation. (XTRONS ANT001  is compatible)
5. If your car's original radio is 4.3" or 7" screen with 12 pins plug, or you have the navigation drive located in the rear of your car, you need to order an extra 6m extension cable to aid for the installation. (Both XTRONS EXL005 & EXL007 are compatible).
6. If there is DSP (Digital Sound Processing) button in your factory radio, or your car has digital sound system such as "Harman Kardon" or "Bose", you will need to modify speaker wires. This unit will work with car speakers directly, and your DSP or digital sound system will NOT work.

•Streamlined and Sleek Design
The combination of touch button and piano black surround makes this unit look and feel luxurious while easy to operate.

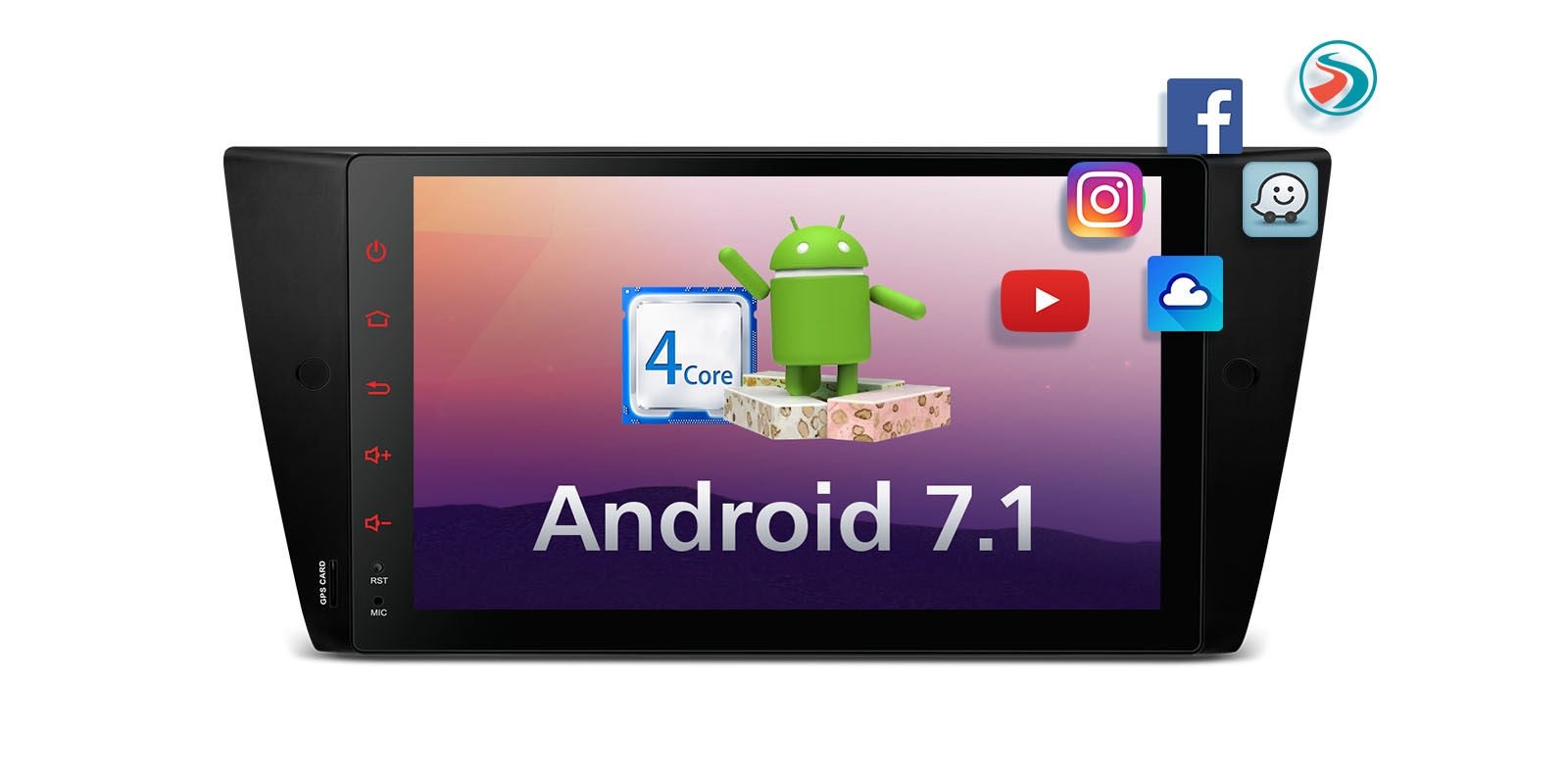

•Fast Quad-core Processor with Powerful Hardware
Powered by the upgraded Android 7.1 system and Quad Core processor, you will enjoy a faster and smoother user experience. It also keeps you up to date with the latest features.

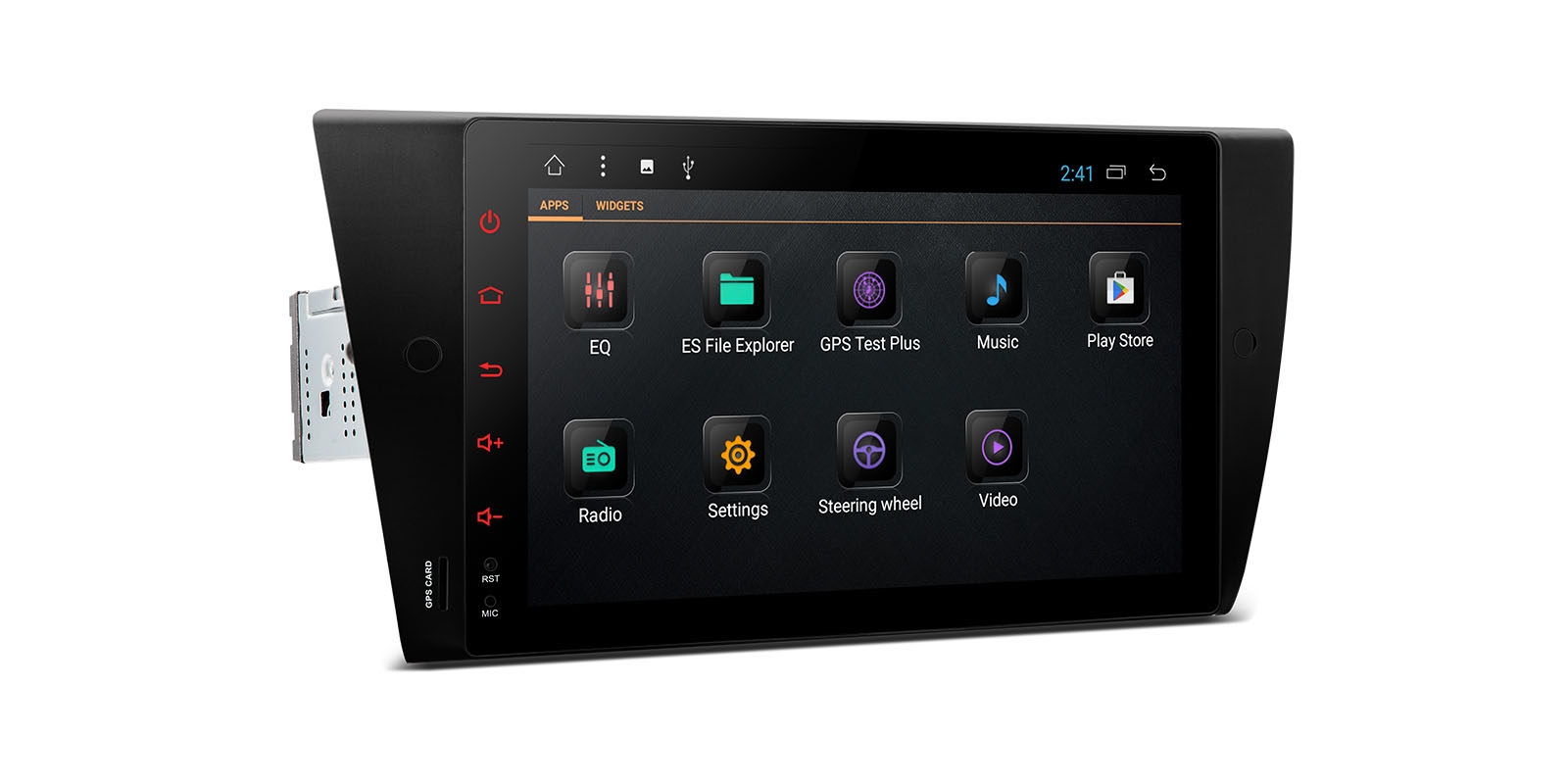

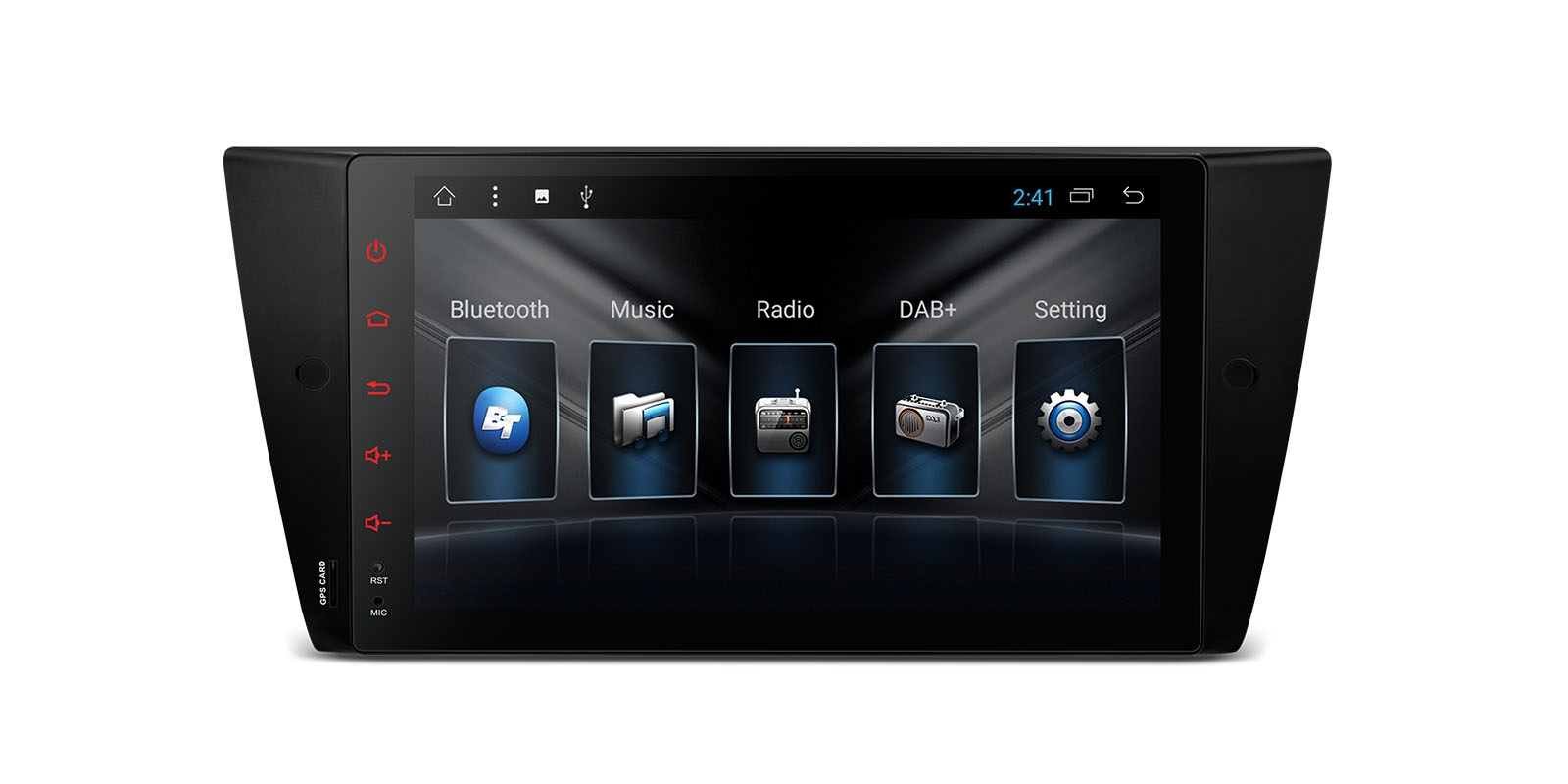

•OEM Style Android User Interface
Large and clear icons make the user interface easy to read, it enables you to operate the unit freely and conveniently, especially if you're on the go.

• 1024*600 HD Touch Screen
The PCD9753BL has a high resolution, sensitive and intuitive touchscreen, offering you super sharp image display and a smooth user experience.

•Multi-window View
Now you can switch apps and run two apps on screen side by side. So go ahead listening to YouTube videos while navigating, or making a Bluetooth phone call with your browser open.

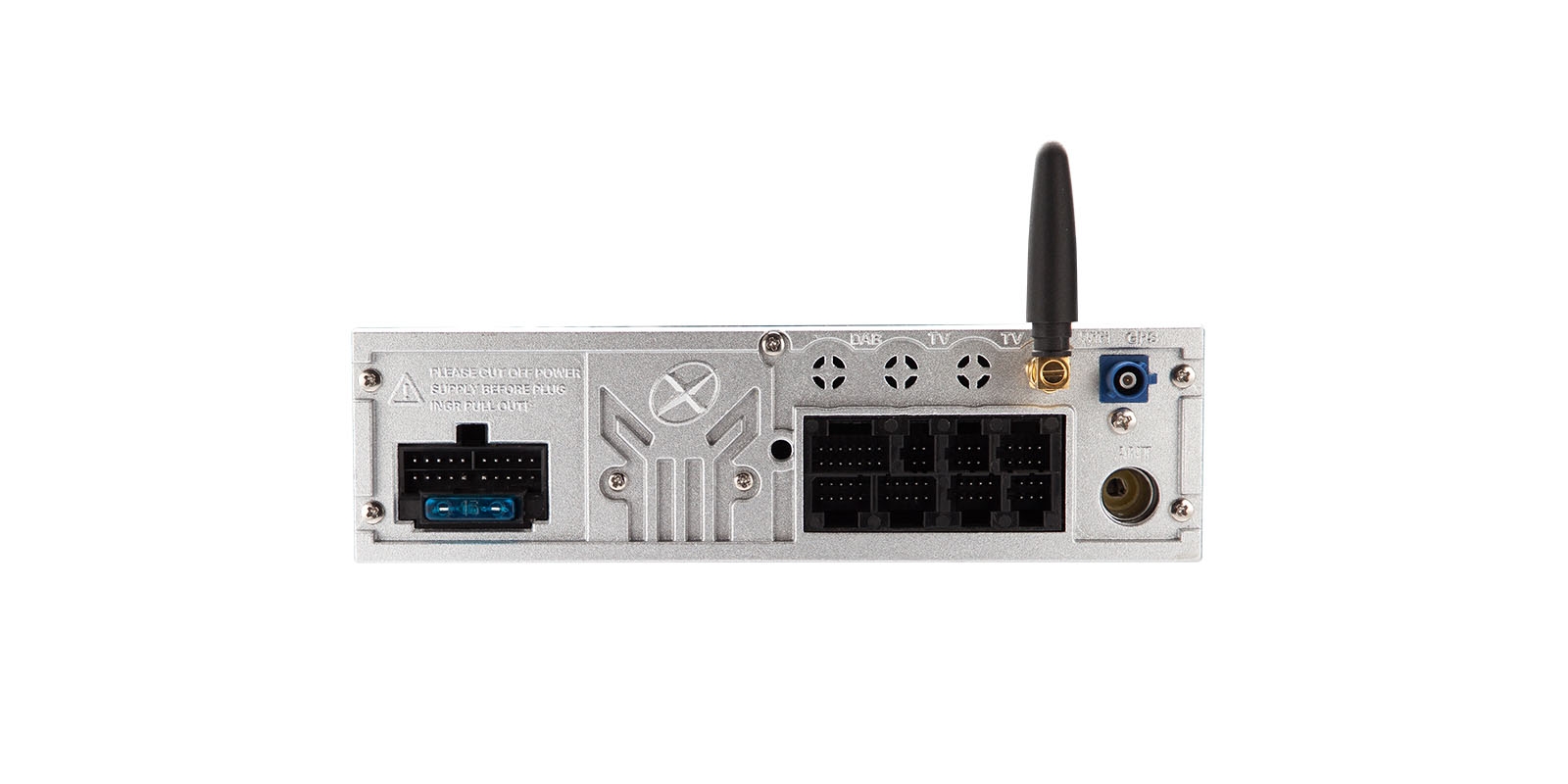

• Performance Improving Design
The newly designed heat sink and connectors maximise the capability of an Andriod unit while keeping the wires simple and tidy, aiding the installation process.
Customised Connector: Plug & go connectors are designed to match the original socket, easy installation and hassel-free.
Automative Standard GPS / Radio Antenna Port: FAKRA connectors are designed to perform up to 3 GHz to meet the automative mechanical and environmental requirements.
Thickened Aluminum Heat Sink: Specially designed for efficient heat dissipation.

•Bring Entertainment to your Journey
Premium Radio Module on Board
Equipped with the premium radio module NXP6686, this unit has strong anti-interference ability and solid analog radio signal reception ability.
36 FM, 18 AM.
DAB+ Tuner Ready
With the optional USB radio receiver stick, connected simply via the USB port, you can enjoy more choice with better sound quality to many digital audio broadcasting channels available today.
Note: USBDAB01 is optional. Need it, inquire with us now!
Multiple Input Sources
Expand your media choices by plugging your USB stick or SD card into this unit to play music video or view photos. You can also use the screen mirroring function to read messages or watch videos directly on the screen of the head unit, instead of your phone.
Note: The USB and SD maximum capacity is 128GB, but the files in the USB and SD card should be within 4GB.
Not all smartphones are compatible with screen mirroring function.
Full RCA Output
Via the RCA output function you or your passengers can share the action onto different monitors, the options are endless to enjoy your entertainment to the max.
3G / 4G Module with Hotspot Function
Surf the Internet on the go with the XTRONS dongles.
By inserting a SIM card into the XTRONS 3GDONG008 or 4GDONG001, you can use them as a hotspot to connect WiFi enabled devices to.
Your head unit, tablets or smartphones within your vehicle can connect via the dongle's hotspot to browse the Internet whilst on the road.
Note: Other 3G / 4G dongles may not compatible with this unit.

•Keep You Informed and Have a Safer Journey

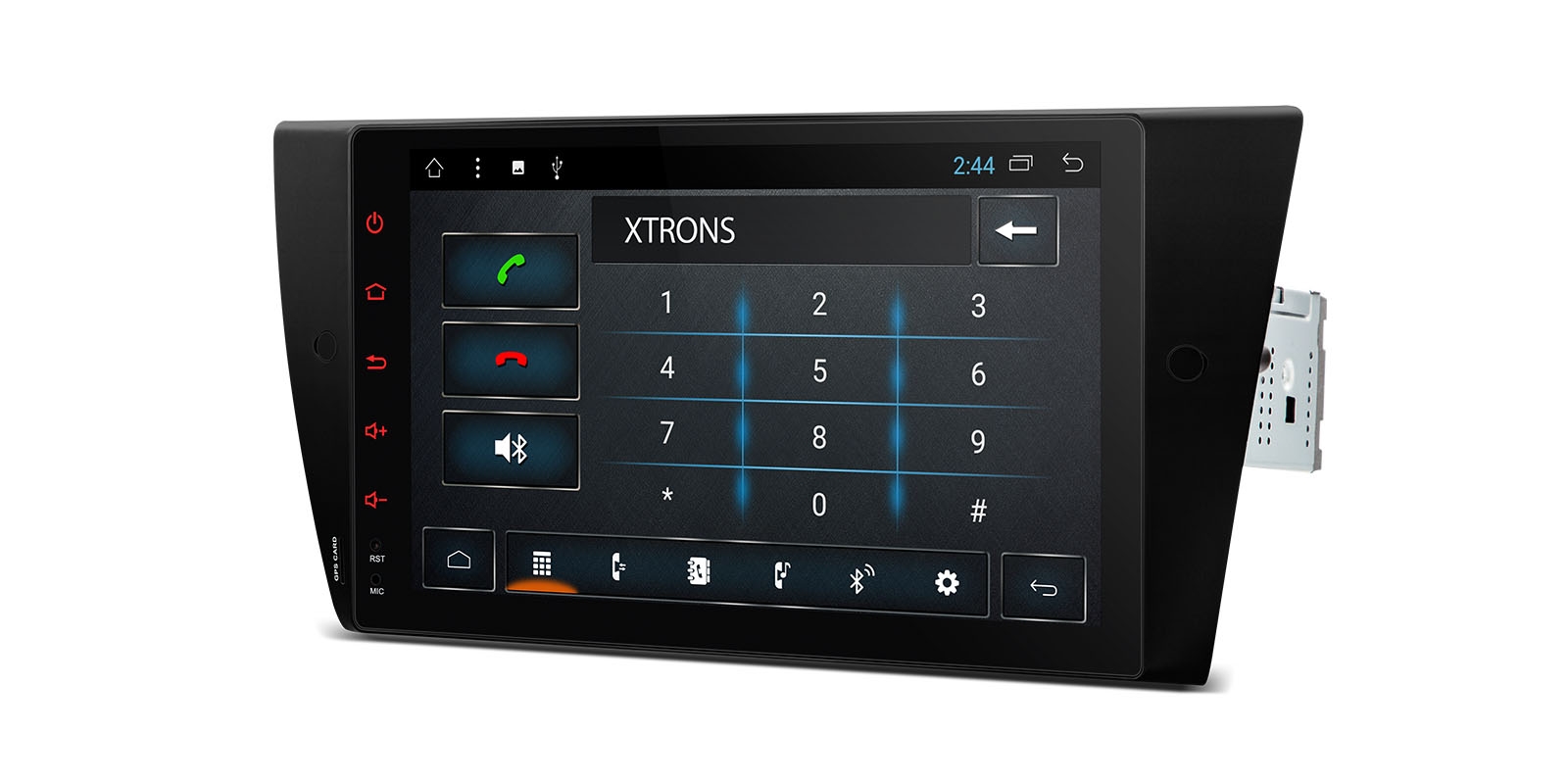

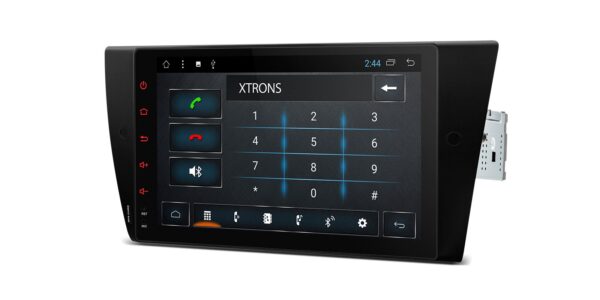

Bluetooth 5.0 for Bluetooth Calls and Music
From hands-free calling, smartphone's phonebook access and Bluetooth music playing, Bluetooth wireless technology has made life in the vehicle much more convenient.
Online Maps, Free to Download
You can get access to different online maps such as Google Maps, iGO, Sygic, Waze and many more. You can use both online and offline maps.
Note: Please note that this unit doesn't come with a GPS map card and the navigation software has to be downloaded from the Google Play store.
Steering Wheel Control Ready (CANbus Box Provided)
Take control of the music or use the hands-free calling function for safety and concentrating on the road ahead. This head unit's steering wheel control (SWC) works with vehicles with a digital SWC.
OBD2 - A Window for you to Diagnose your Car's Status
With OBD2 function available on this unit, you can retrieve real-time data and trouble codes from your vehicle's computer. All the data from your vehicle is presented in an easy to read format.
Note: OBD2 is optional. Need it, inquire with us now!
DVR Ready
XTRONS PCD9753BL comes with a DVR input, just connect a XTRONS DVR with PCD9753BL, it captures every event that occurs on the road ahead, also provides safety features such as collision avoidance.
Note: DVR019 is optional. Need it, inquire with us now!

•Adding More Exciting Features to Your Head Unit
1. DAB+
Enjoy the audiophile-level sound in your car
XTRONS USBDAB01 is compatible.
2. OBD2
A window for you to diagnose your car status
XTRONS OBD02 is compatible.
3. MIC
Makes the hands free Bluetooth easier and safer
XTRONS MIC001 & MIC002 are compatible.
4.DVR
Helps you record your journey on the road
XTRONS DVR019 is compatible.
5.3G & 4G
Browse on the Internet with 3G/4G Dongle
XTRONS 4GDONG001 and 3GDONG008 are compatible.
6.CAMERA
Ensure the safety of your driving
XTRONS CAM005 / CAM006 / CAM007 / CAM009 / CAM001F are compatible.

•Other Features
1. 4*45W Surround Sound
Jazz, Pop, Classic, Rock, News, Normal
2. Customize Your Themes
6 kinds of static themes. Custom yourself.
3. Supports Multiple Menu Languages
English, German, French, Spanish, Italian, Portugese, Russian, Dutch, Polish, Japanese, Simplified & Traditional Chinese, Arabic, and many more. Over 70 languages are available in total.

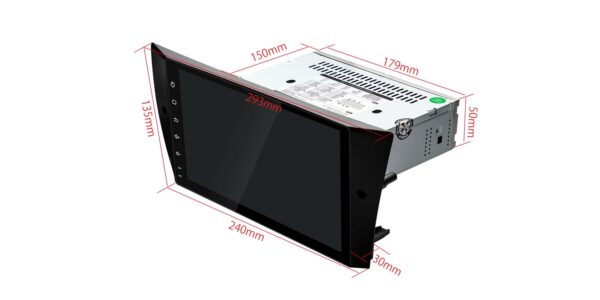

•Size:
Head Unit: 179*150*50mm
Face Panel: (Top: 293  Bottom: 240)*135*30mm

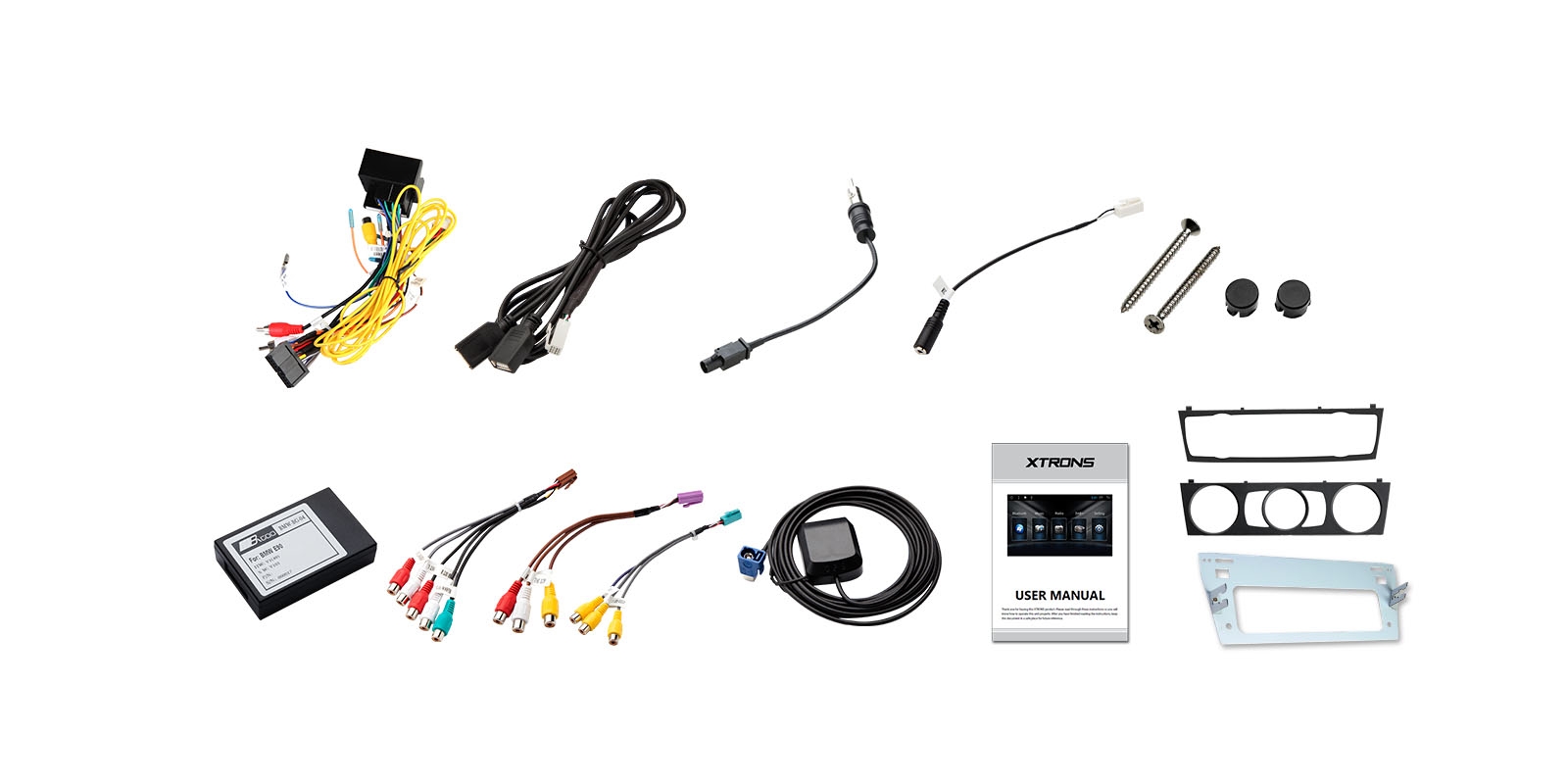

•Accessories:
2 x ISO Wiring Harness
1 x USB Cable
1 x GPS Antenna
1 x CANbus Box
3 x RCA Cables
1 x Microphone
1 x Radio Antenna Adapter
2 x Screw Caps
1 x User Manual
